BVP1000 Video Wall Controller



Introduction

BVP1000 is hardware -based and cost effective video wall controller with different size chassis like 1U,2U,3U,7U.Up to 8 x input sources can be displayed simultaneously to LCD wall or LED wall with any size and at any position,it’s compatible 4K@60Hz resolution on video wall ,with 4:4:4: color process, it can achieve large-screen display effects with rich colors, clear picture quality, and real and delicate.

BVP1000 wall controller friendly use in Commend Room ,Meeting Room ,Exhibition Center and Data Center,Broadcast Center and others .

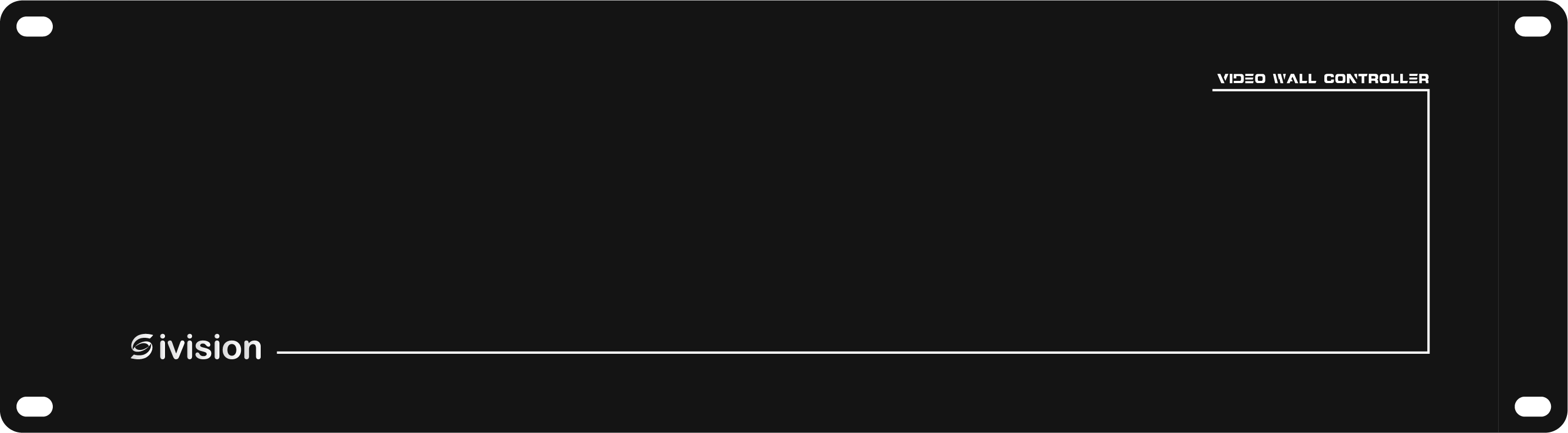

Frong Panel

Rear Panel

 Output Slot(DVI、HDMI)  Power on/off   Plug   3D-IN Interface

Cascading synchronize Lan Port   RS232 Port   Input Slot   Output Slot

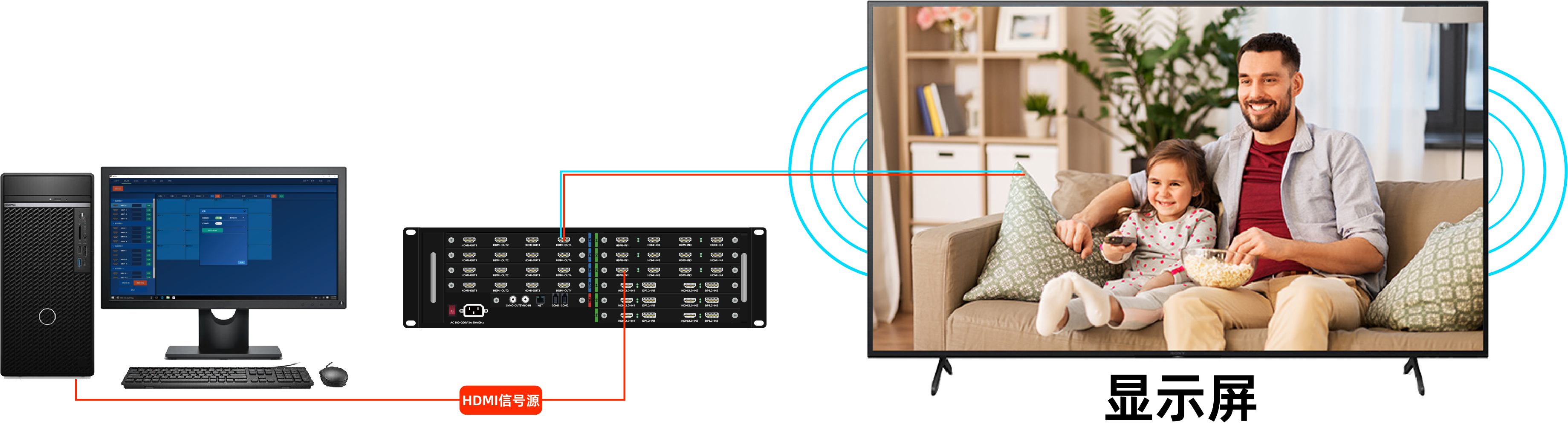

Video source echo

Using C/S architecture, the software is a green version without installation, and the video signal and splicing layout of all devices are controlled in real time through the echo interface management system, and what you see is what you get.

Unified management of multiple sets of screens

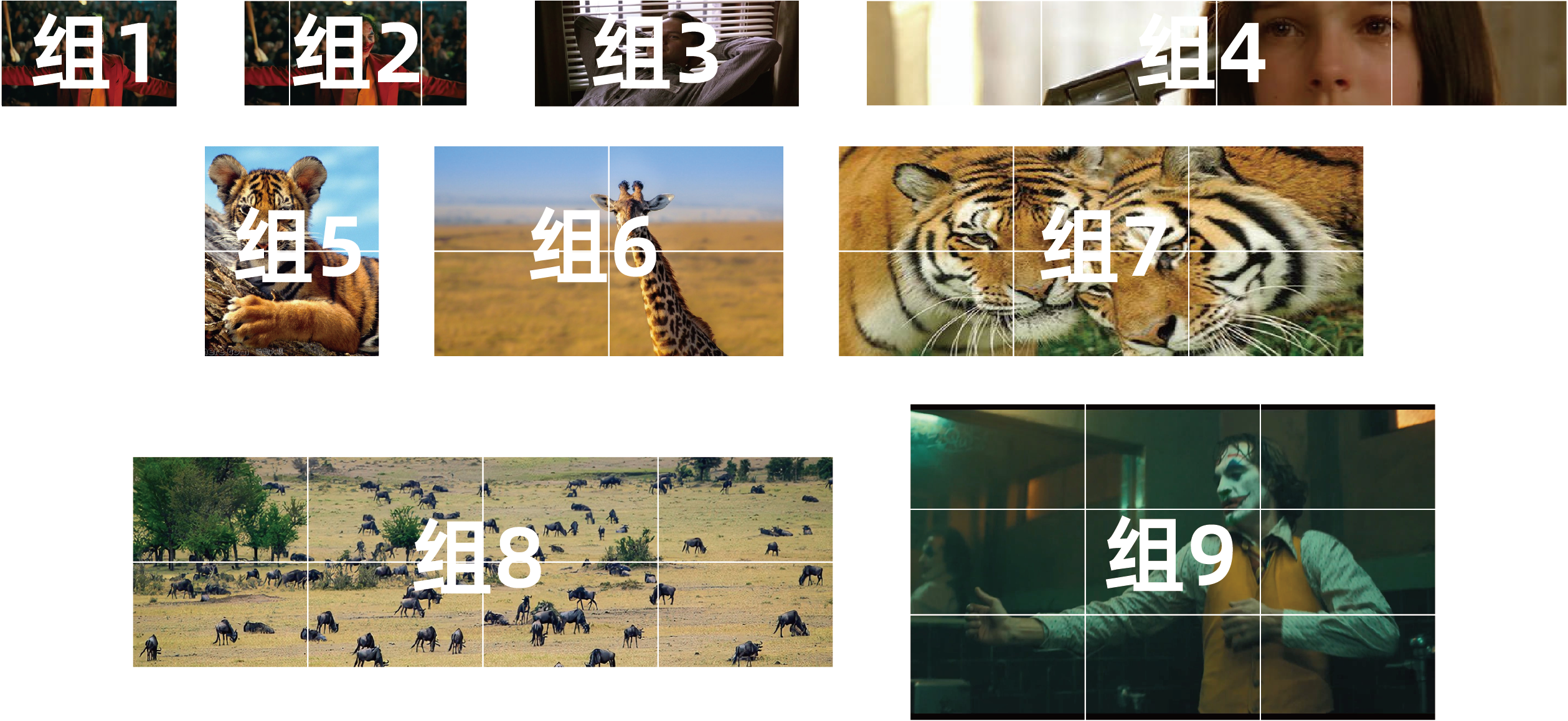

A single device supports no less than 9 groups of splicing screens of different resolutions, and signal sharing between different groups of screens, making the system streamlined and convenient for control.

Audio control

Support embedded audio signal transmission, flexibly complete synchronous switching with channel, audio and video plan call and other operations, and realize intelligent control of audio signals.

Network port output card

Network port output card is used with LED receiving card, single network port supports 650,000 points, supports any network port layout, any network port splicing, any network port change coordinate starting point, convenient and flexible, can meet a variety of LED display splicing needs.

At the same time, it also supports the secondary development of its own protocol to cooperate with different manufacturers to receive cards.

Station logo display

Flexible Layout

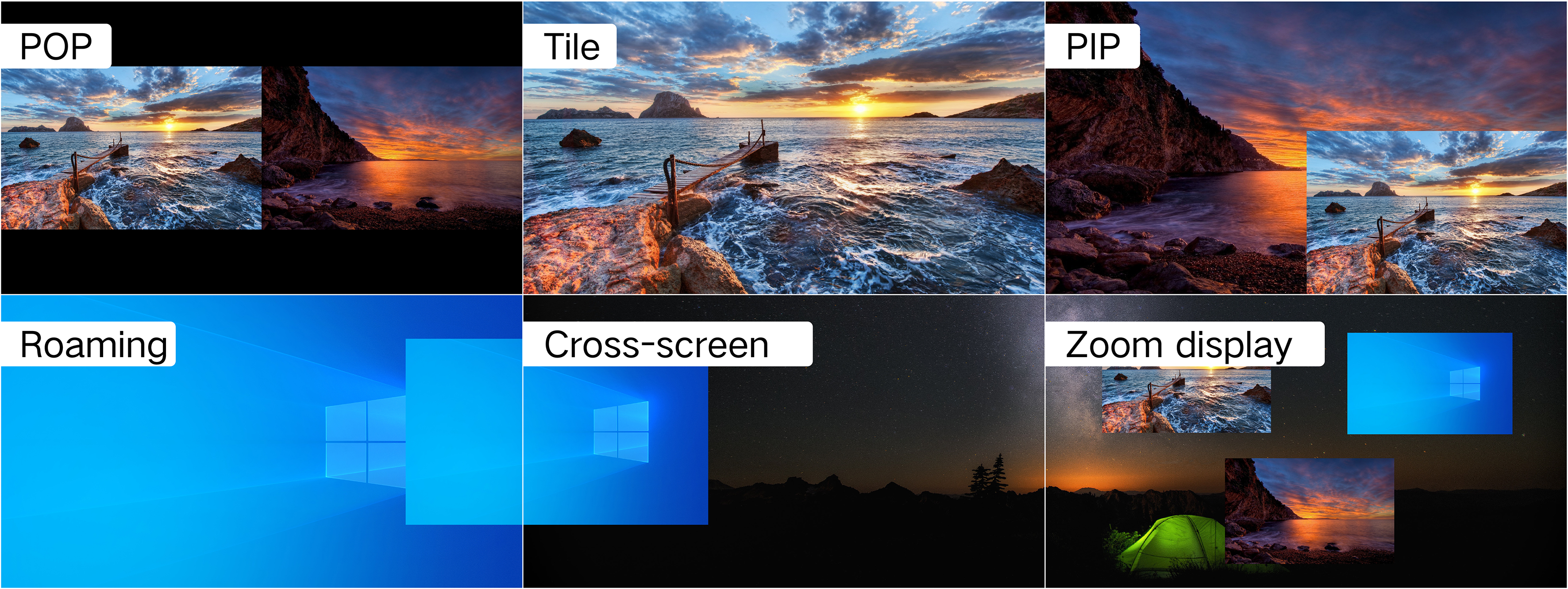

The signal source can open windows, PIP, cross-screen, roaming, and zoom display at any position of the video wall. Each output FPGA system card can open 8 windows to meet the display of different scenarios.

4K@60Hz

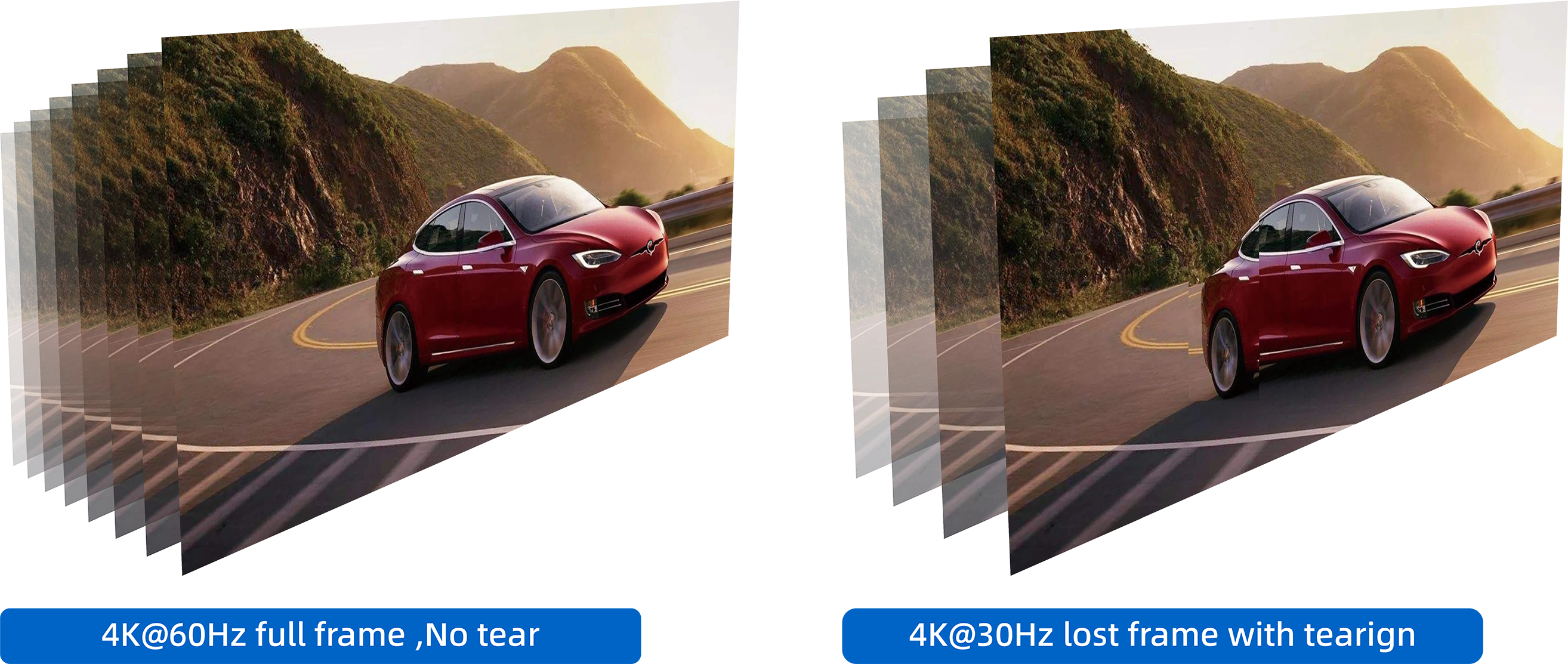

With leading 4:4:4 full frame process,sychroniztion tech,smart process 4K@60 Ultra-high definition signal,restore picture color , preserve the details of the image, and the high-speed motion video signal can be displayed in high-definition, synchronous and smooth on the large splicing screen.

Scrolling Text

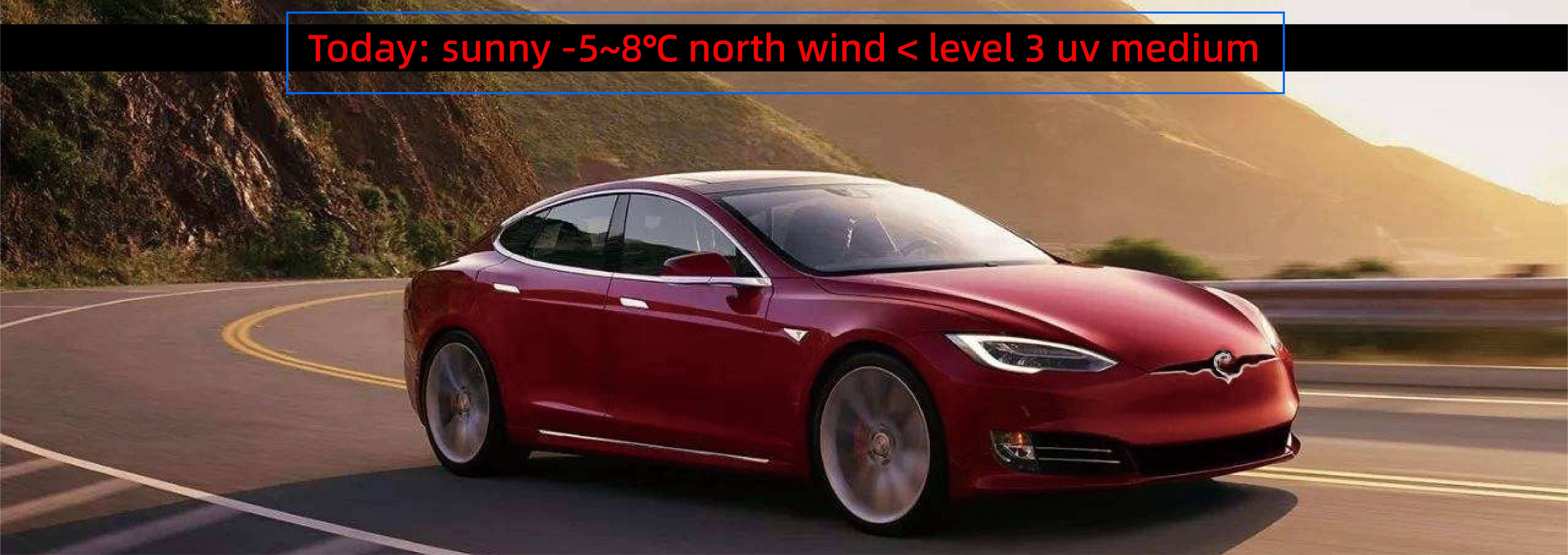

Support a high definition dynamic scrolling text to display notifications, news, slogan and etc.

This feature allows users to customize the content, direction and speed and style of scrolling text.

Smart Back-up

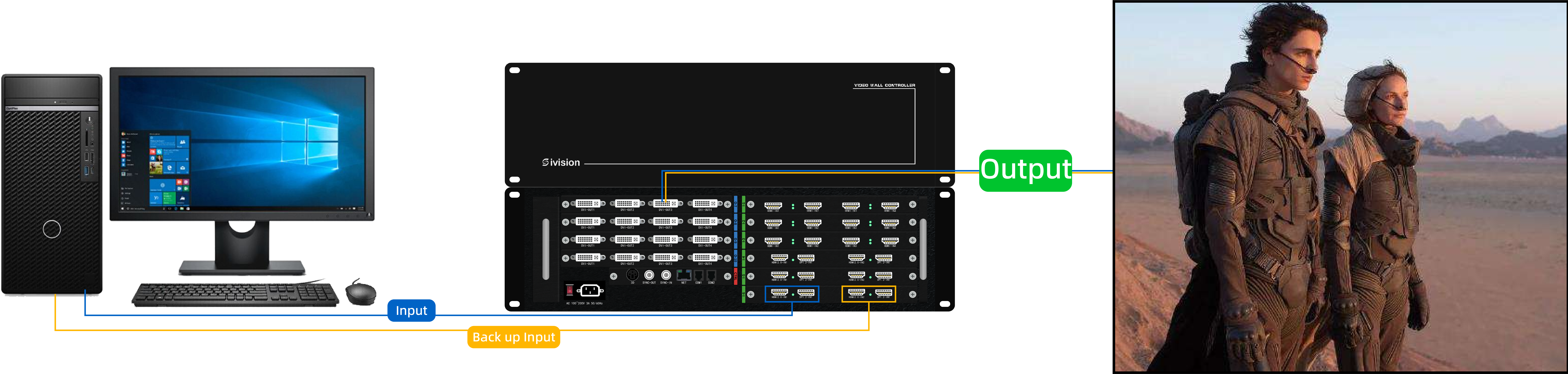

Back up the two input channels to each other. When one of the signals is interrupted, it will automatically jump to the other signal within 100ms to ensure that the large-screen display is not interrupted.

Smart Irregualr Display

Support smart output set , which fundamentally solves the problem of displaying different resolutions on a large screen.

Smart Control

Support PC Control ,IOS ,Andrio Control and Third Party API

Smart EDID

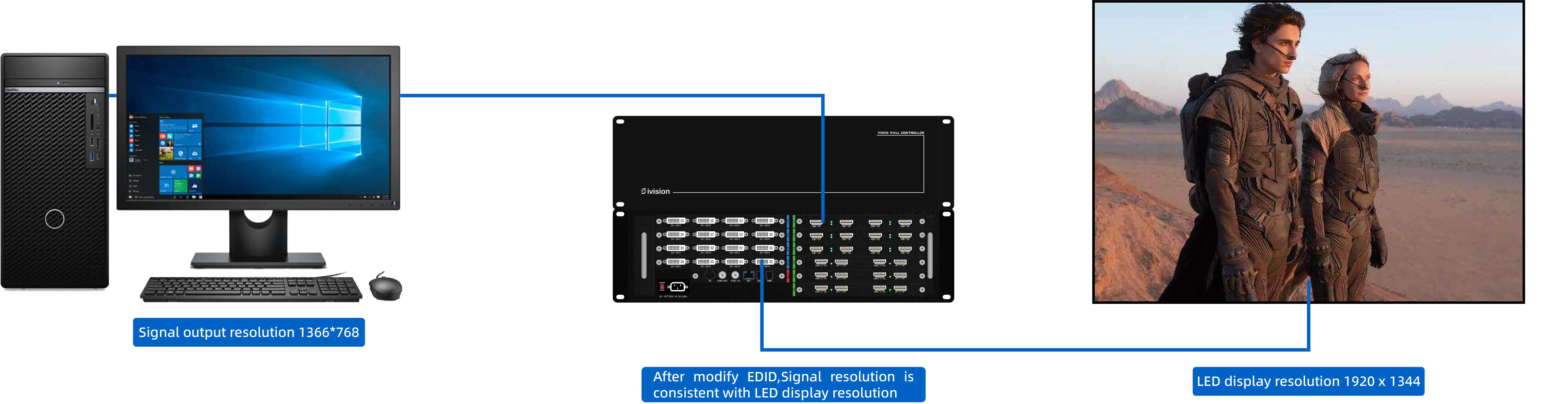

Both input and output signal sources can manage custom resolutions through Smart EDID.

Smart Security

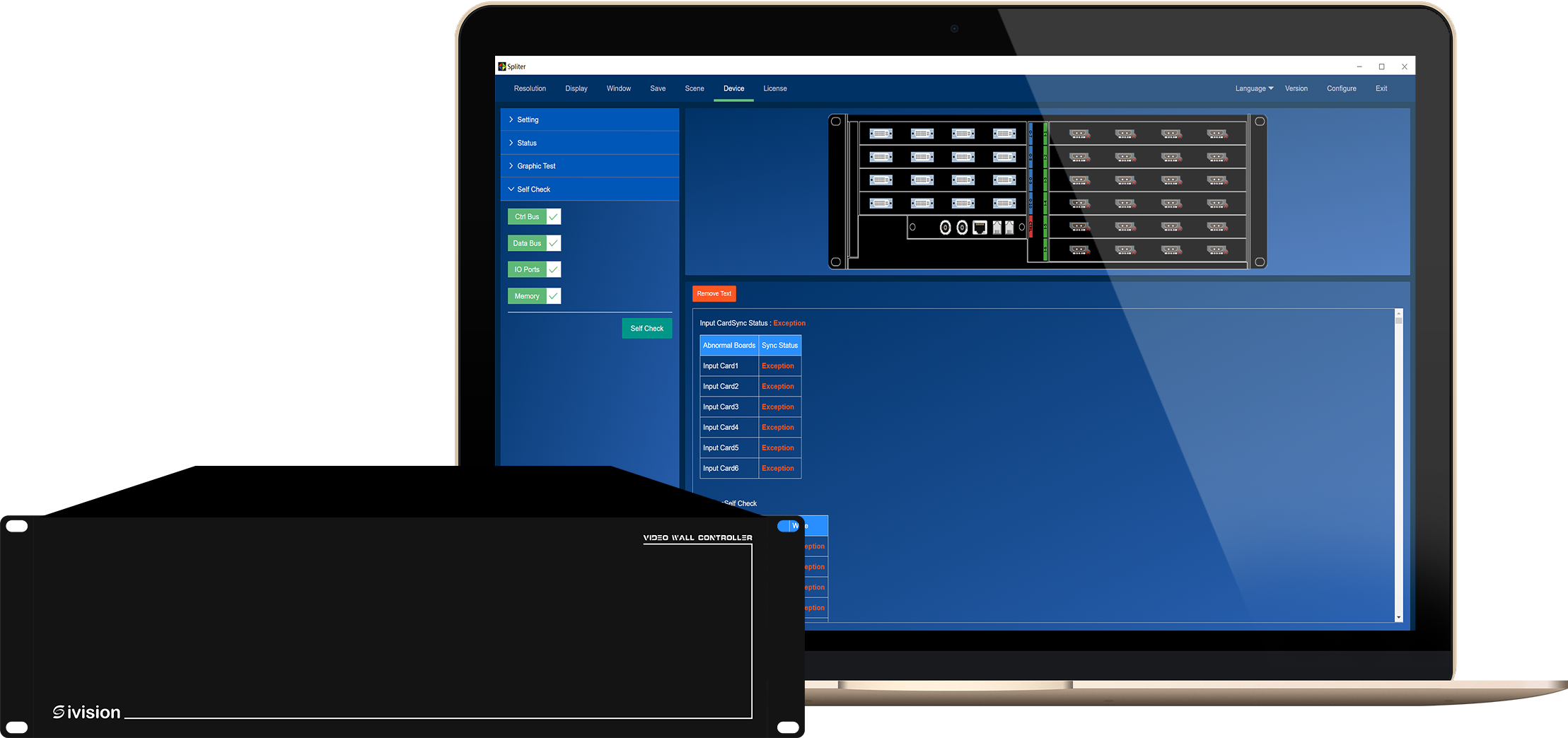

Smart self-inspection, autio-print relevant information,easy for repari reference.

Smart Frame Synchroniztion

With the unfied manage on system ,make sure the output signal source all synchroniztion with video wall display.

BVP1000 Video Wall Controller



Introduction

BVP1000 is hardware -based and cost effective video wall controller with different size chassis like 1U,2U,3U,7U.Up to 8 x input sources can be displayed simultaneously to LCD wall or LED wall with any size and at any position,it’s compatible 4K@60Hz resolution on video wall ,with 4:4:4: color process, it can achieve large-screen display effects with rich colors, clear picture quality, and real and delicate.

BVP1000 wall controller friendly use in Commend Room ,Meeting Room ,Exhibition Center and Data Center,Broadcast Center and others .

Frong Panel

Rear Panel

 Output Slot(DVI、HDMI)  Power on/off   Plug   3D-IN Interface

Cascading synchronize Lan Port   RS232 Port   Input Slot   Output Slot

Video source echo

Using C/S architecture, the software is a green version without installation, and the video signal and splicing layout of all devices are controlled in real time through the echo interface management system, and what you see is what you get.

Unified management of multiple sets of screens

A single device supports no less than 9 groups of splicing screens of different resolutions, and signal sharing between different groups of screens, making the system streamlined and convenient for control.

Audio control

Support embedded audio signal transmission, flexibly complete synchronous switching with channel, audio and video plan call and other operations, and realize intelligent control of audio signals.

Network port output card

Network port output card is used with LED receiving card, single network port supports 650,000 points, supports any network port layout, any network port splicing, any network port change coordinate starting point, convenient and flexible, can meet a variety of LED display splicing needs.

At the same time, it also supports the secondary development of its own protocol to cooperate with different manufacturers to receive cards.

Station logo display

Flexible Layout

The signal source can open windows, PIP, cross-screen, roaming, and zoom display at any position of the video wall. Each output FPGA system card can open 8 windows to meet the display of different scenarios.

4K@60Hz

With leading 4:4:4 full frame process,sychroniztion tech,smart process 4K@60 Ultra-high definition signal,restore picture color , preserve the details of the image, and the high-speed motion video signal can be displayed in high-definition, synchronous and smooth on the large splicing screen.

Scrolling Text

Support a high definition dynamic scrolling text to display notifications, news, slogan and etc.

This feature allows users to customize the content, direction and speed and style of scrolling text.

Smart Back-up

Back up the two input channels to each other. When one of the signals is interrupted, it will automatically jump to the other signal within 100ms to ensure that the large-screen display is not interrupted.

Smart Irregualr Display

Support smart output set , which fundamentally solves the problem of displaying different resolutions on a large screen.

Smart Control

Support PC Control ,IOS ,Andrio Control and Third Party API

Smart EDID

Both input and output signal sources can manage custom resolutions through Smart EDID.

Smart Security

Smart self-inspection, autio-print relevant information,easy for repari reference.

Smart Frame Synchroniztion

With the unfied manage on system ,make sure the output signal source all synchroniztion with video wall display.

We could not find any corresponding parameters, please add them to the properties table

BVP1000 Fully intelligent splicing processor


Equipment load

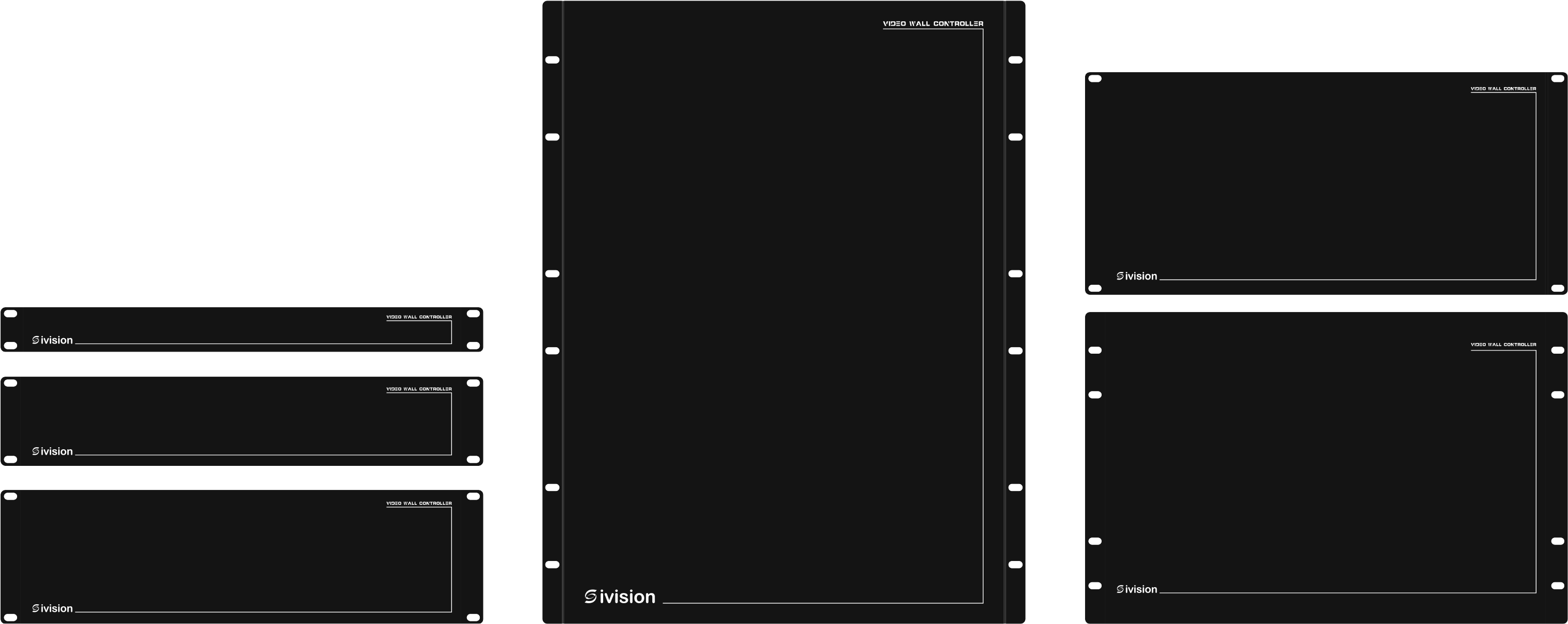

Chassis type 1U 2U 3U 5U 7U 14U
Maximum number of input channels 2K:8 input
4K30:4 input
4K60:2 input
2K:8 input
4K30:4 input
4K60:2 input
2K:36 input
4K30:16 input
4K60:6 input
2K:48input
4K30:24input
4K60:12input
2K:80 input
4K30:40 input
4K60:20 input
2K:160 input
4K30:80 input
4K60:40 input

Maximum number of

digital interface output channels

8 input 16 input 16 input 24 input 40 input 80 input

Maximum number of

Gigabit network port output channels

20 input 40 input 40 input 60 input 100input 200input
Single digital interface outlet with load 2.6 million points
Single gigabit output with load 650,000 points
Maximum load 20.8 million points 41.6 million points 41.6 million points 62.4 million points 104 million points 208 million points
Single outlet widest/highest 3840/3840
Maximum number of frames (layers) 16 32 32 48 80 160
Audio Supports HDMI audio input
Device echo Supports a maximum of three return graphics cards








input interface



Interface type Signal specification
DVI×4
Only VESA standard DVI-D digital signals are supported.
-- The maximum resolution of a single port is 2048 x 1152@60Hz, and the minimum resolution is 800 x 600@60Hz.
-- EDID customization is supported
Port indicator status Description:
-- On: The input source is connected properly.
-- Off: The signal source is not connected or is abnormal.
HDMI1.3×4
EIA/CEA-861 standard, HDMI1.3×4 standard,
-- Single-port resolution supports a maximum of 2048×1152@60Hz and a minimum of 800×600@60Hz;
-- EDID customization is supported;
Port indicator status Description:
-- On: The input source is connected properly.
-- Off: The signal source is not connected or is abnormal.
HDMI1.4×4
HDMI1.4 standard,
-- Support 3840x2160@30hz, 3840×1080@60Hz;
-- EDID customization is supported;
Port indicator status Description:
-- On: The input source is connected properly.
-- Off: The signal source is not connected or is abnormal.
HDMI2.0×2
HDMI2.0×2 standard,
-- Support 3840x2160@60Hz,4096×2160@60Hz,1920×4800@60Hz,7680×1080@60Hz;
-- Limit width 7680, limit height 4800;
-- EDID customization is supported;
-- Compatible with HDMI1.4 and HDMI1.3 video input;
Port indicator status Description:
-- On: The input source is connected properly.
-- Off: The signal source is not connected or is abnormal.
DP1.2×2
DP1.2×2 standard,
-- Support 3840x2160@60Hz,4096×2160@60Hz,1920×4800@60Hz,7680×1080@60Hz;
-- Limit width 7680, limit height 4800;
-- EDID customization is supported;
-- Compatible with DP1.1 video input;
Port indicator status Description:
-- On: The input source is connected properly.
-- Off: The signal source is not connected or is abnormal.
HDMI1.3×8
One card has eight channels,HDMI1.3 standard;
-- Single-port resolution supports a maximum of 2048×1152@60Hz and a minimum of 800×600@60Hz
-- EDID customization is supported;
-- Only RSB4:2:2 color depth processing is supported
Port indicator status Description:
-- On: The input source is connected properly.
-- Off: The signal source is not connected or is abnormal.
VGA×4
VESA standard,
-- Support 1920x1080@60Hz;
Port indicator status Description:
-- On: The input source is connected properly.
-- Off: The signal source is not connected or is abnormal.
3G-SDI×4
3G-SDI interface, compatible with HD-SDI and SD-SDI standards.
-- Support ST-424 (3G), ST-292 (HD) and SMPTE 259 SD standard video source input;
-- Single channel supports a maximum of 1920×1080@60Hz video input;;
-- Support 1080i/576i/480i deinterlace;
Port indicator status Description:
-- On: The input source is connected properly.
-- Off: The signal source is not connected or is abnormal.
Video return card
-- Supports screen echo of a maximum of 24 signal sources;
-- A single network port can display images of a maximum of 16 signal sources.
-- The USB port is not open for use








Output interface



Interface type Signal specification
DVIx4
DVI×4 output card
——Single maximum load 2.6 million points
——Support custom output resolution, intelligent mode resolution;
——Support  8bitRGB4:4:4;
HDMIx4
HDMI×4 output card
——Single maximum load 2.6 million points
——Support custom output resolution, intelligent mode resolution;
——Support  8bitRGB4:4:4;
DP1.2x2
DP1.2×2 output card
——Single belt carrying 8.29 million points;
——Support custom output resolution, intelligent mode resolution;
——Support  8bitRGB4:4:4,10bitRGB4:4:4,12bitRGB4:4:4;
Port indicator status Description:
-- On: The input source is connected properly.
-- Off: The signal source is not connected or is abnormal.
RJ45x10
RJ45 Gigabit network port
——Single maximum load 650,000 points;
——When the transmission depth is 8bit, the load is 650,000 points;
——When the depth is 10bit, the load is 300,000 points.
——Support the whole series of visual Monitor receiving cards;
——Support the secondary development of self-owned agreement receiving card;








Complete machine specification



Boundary dimension(mm) 482.6×270×44.5
(HWD)
482.6×270×88.9
(HWD)
482.6×315×133
(HWD)
482.6×315×222.5
(HWD)
482.6×315×310
(HWD)
482.6×438×662.3
(HWD)
Chassis weight(kg) 3.6±0.5 6.3±0.5 7.8±0.5 13.7±0.5 15.0±0.5 30.0±0.5
Supply voltage  110~240V
Power supply frequency  50~60Hz
Power consumption of the whole machine 50.4W 102W 204W 550W*2 550W*2  550W*2
Heat dissipation method Fans&Heatsink
Operating temperature 0~50℃
